Quick Details

  • Type: Waterproof Membrane
  • Place of Origin: Shandong, China (Mainland)
  • Brand Name: Chensheng
  • Model Number: Xx-pvc
  • Product Name: pvc waterproof material with fabric
  • Thickness: 1.2mm 1.5mm 2.0mm
  • Length: 20m
  • Width: 1-2.05m
  • Application: Roof,Basement,Bushroom,Underground,Swimming Pool,etc.
  • Color: White Grey
  • Material: PVC High Polymer
  • Feathure: uv-resistence
  • Lapjoint: >100mm
  • Certificate: CE ISO

Packaging & Delivery

Packaging Details Woven bag packaging or as your requests for pvc waterproof material with fabric
Delivery Time Shipped in 15 days after payment

pvc waterproof material with fabric

Product Description

Description

"Chensheng" brand PVC waterproof membrand is a kind of macromolecule materials with excellent properties,which consist of polyvinyl chloride resin mainly and various dedicated auxiliaries,anti-aging ingredient,produced by anvanced equipment and technology.PVC features with strong tensile strength,high elongation,low shrinking rate,good low temperature flexibility,long lifetime,stable properties,reliable quality and convenient construction.



All Kinds of PVC



PVC sorts three types based on product structure physical property:

1.PVC  Membrane of homogeneous or non-lamination(code H)

2.PVC  Membrane utilizing a fabric backing or lamination(code L)

3.PVC  Membrane with internally reinforcement fabric (code P)

4.PVC  Membrane with reinforcement of fiberglass and nonwoven(code G)

5.PVC  Membrane which utilizing a fabric backing and with reinforcement of fiberglass and nonwoven(code GL)



Product Features

1.  Strong tensile strength, high elongation, can fit big deformation of substrates.

2.  Excellent anti-extreme weather property, can adapt to various environment temperature difference.

3.  Suitable for exposed projects with long lifetime and good anti-aging property.

4.  Can be welded firmly and reliably.

5.  Outstanding root penetration resistance, best choice for planted roofs.

6.  Simple and fast construction without pollution.

7.  Great plasticity and fast treatment with corners and details.

Usage
Main Application

Polyvinyl Chloride (PVC) membrane is widely used in the roofs of civil buildings, tunnels, channels, subways, highways, planting roofs, the roofs of steel frame structure buildings, waterproofing,anti-seepage,moisture proof of side walls of basements,baseboards,head plates and roofs,etc.







Technical data



No.

ITEM

1

2

1

Tension strength / Mpa

8

12

2

Fracture elongation   ≥ / %

200

300

3

Measurement changing at heating  / %

3

2

4

Cold bending

-20°C no leaking

-25°C no leaking

5

Perforation resistance

Water impermeability

6

Water impermeabvilitv

Water impermeability

7

Binding property with cutting(N/mm)

Appearance

3.0/breaking membrane

8

Hot air ageing

Appearance

No craze, no bubble, no cohering, hole

Tension strength / %

±25

±20

Fracture elongation changing rate

Cold bending / %

-15°C no leaking

-20°C no leaking

9

Chemistry corrosion resistance

Tension strength / %

±25

±20

Fracture elongation changing rate

Cold bending / %

-15°C no leaking

-20°C no leaking

10

Phytotrons accelerating ageing

Tension strength / %

±25

±20

Fracture elongation changing rate

Cold bending / %

-20°C no leaking

-20°C no leaking







Constraction steps

Notes

1. To reach a great and long waterproof quality, it is recommended to use Chensheng brand customized system accessories and operate as Chensheng custruction standards and technical regulation while application.

2. Different specification PVC should be piled separately while storage and transportation.

3. Avoid sun and rain, keep ventilate and far away from fire source.

4. Lifetime is one year since produced under normal storage and transportation.

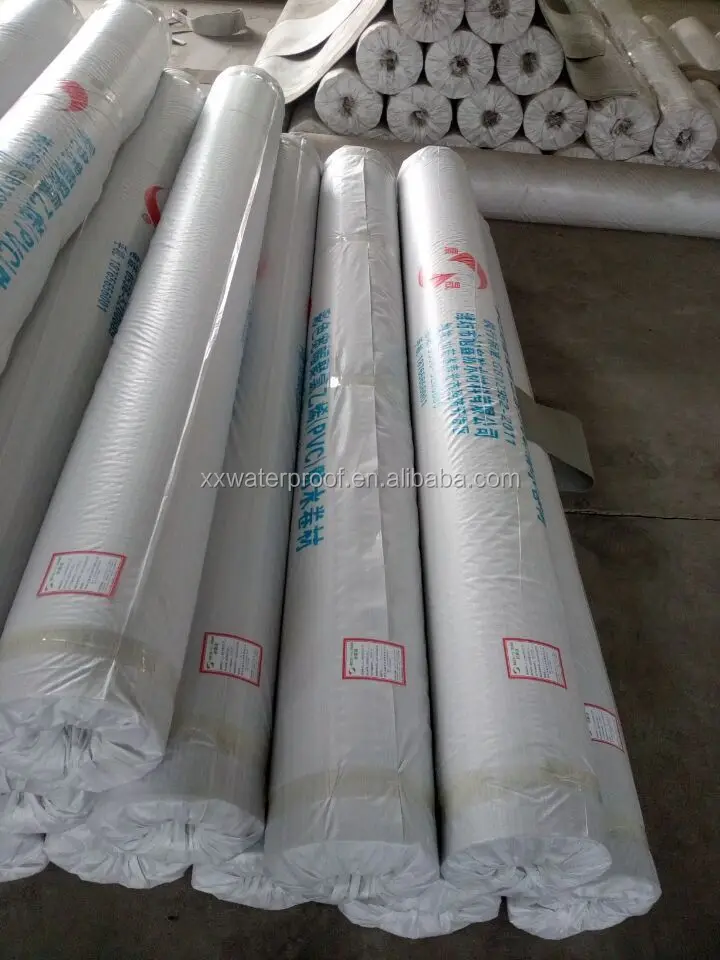

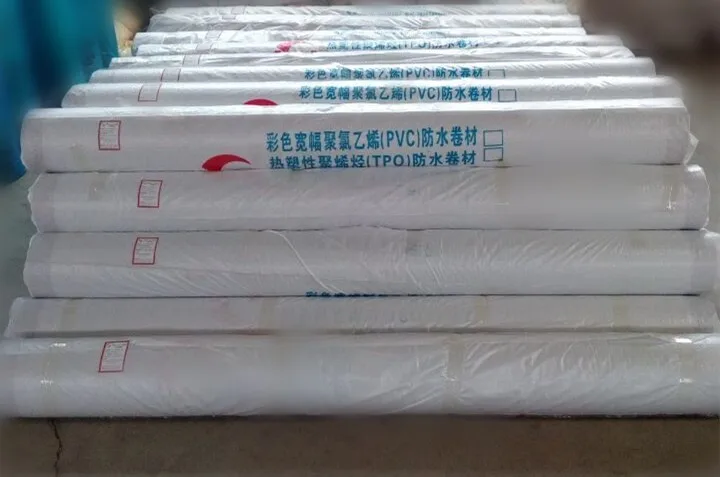

Packing and Shipping

Packing and Shipping






Our Services

Our Service



1.Sample: The sample is free,you only should pay for the express freight.



2.If you order to us, we promise the quality, if some quality problem happened,then

   1)We will dispatch our Quality and Problems Appraisers to make a confirmation.

   2)Have a negotiation of the compensation and sign agreements.

   3)Our After-Sales Department will perform the duties as the agreements.

Company Information

Company Information

Xuxin Waterproof Materials CO.,Ltd is one specialized supplier on waterproof materials.Products got the approval of ISO9001 certificate, ISO14001 certificate. And some products can meet American ASTM and CE international standards.As a public company, we mainly supply SBS/APP modified bitumen waterproof membrane, Seladhesive bitumen membrane/tape,PE/PVC/EPDM/TPO/HDPE Waterproof Membrane, PP non-woven fabric,Waterproof Coating, Drainage Board, Geotextile,Color sand and etc.



FAQ

Frequently Asked Questions

Q1:How to get the sample?

A :We can provide you samples for quality inspection.According to our company policy, samples are free, we only charge the freight fee.The freight fee will be returned If you place the order.

Q2:What's are the MOQ?

A :The MOQ is 500 square meters usually.Also we can according to your condition to set the MOQ.

Q3:How about the delivery time?

A :Delivery time about 15days after your deposit or L/C at sight.

Q4:What kind of payment do you support?

A :T/T, L/C and Paypal are accepted.

Q5:What's your main market?

A :Our products are exported to Southeast Asia,The middle East,West Europe,Africa,Australia and etc.

Q6:Can we visit your factory to inspect the goods for the order?

A :Welcome to visit our factory to inspect the quality.We sincerely hope to establish a win-win cooperation relationship with you.
